AZC099-04S - Low Capacitance ESD Protection Array

Description

AZC099-04S is a high performance and low cost design which includes surge rated diode arrays to protect high speed data interfaces.

Features

  • ESD Protect for 4 high-speed I/O channels Provide ESD protection for each channel to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) (5/50ns) Level-3, 20A for I/O, 40A for Power IEC 61000-4-5 (Lightning) 4A (8/20µs) AZC099-04S may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (± 15kV air, ±8kV contact discharge). One AZC099-04S can be used to replace 4 BAV99 devices in a 5V.

📥 Download Datasheet

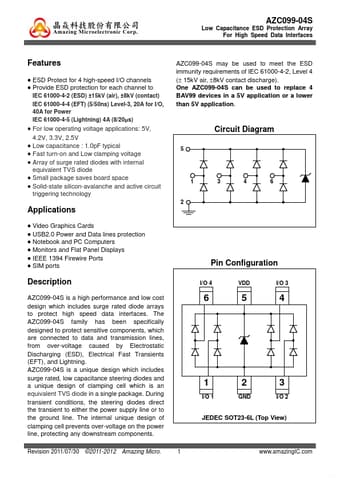

Datasheet preview – AZC099-04S

Datasheet Details

Part number AZC099-04S
Manufacturer Amazing Micro
File Size 198.24 KB
Description Low Capacitance ESD Protection Array
Datasheet download datasheet AZC099-04S Datasheet
Additional preview pages of the AZC099-04S datasheet.

📁 Similar Datasheet

  • AZC002-02N - Low Capacitance ESD Protection Array (Amazing Microelectronic)
  • AZC002-04S - Low Capacitance ESD Protection Array (Amazing Microelectronic)
  • AZC015-02N - Low Capacitance ESD Protection Array (Amazing Microelectronic)
  • AZC - ALUMINIUM ELECTROLYTIC CAPACITORS (Itelcond)
  • AZC19-04S - Ultra Low Capacitance ESD Protection Array (Lingsemic)
  • AZC199-02S - Low Capacitance ESD Protection Array (Amazing Microelectronic)
  • AZC199-04C - Low Capacitance High ESD Level Protection Array (Amazing Microelectronic)
  • AZC199-04S - Low Capacitance High ESD Level Protection Array (msksemi)
  • AZC199-04S - 4-line uitra low capacitance tvs array (Leiditech)
  • AZC199-04S - Low Capacitance Protection Array (UMW)
Other Datasheets by Amazing Micro

    Full PDF Text Transcription

    Click to expand full text
    AZC099-04S Low Capacitance ESD Protection Array For High Speed Data Interfaces Features ESD Protect for 4 high-speed I/O channels Provide ESD protection for each channel to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) (5/50ns) Level-3, 20A for I/O, 40A for Power IEC 61000-4-5 (Lightning) 4A (8/20µs) AZC099-04S may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (± 15kV air, ±8kV contact discharge). One AZC099-04S can be used to replace 4 BAV99 devices in a 5V application or a lower than 5V application. For low operating voltage applications: 5V, 4.2V, 3.3V, 2.5V Low capacitance : 1.
