AZKN1040T Datasheet - Amazing Microelectronic

High-Speed CAN Transceiver

AZKN1040T Features

* ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant for 2Mbps and 5Mbps CAN FD with basic wake-up implementation

* Fault voltage up to ±70V for bus pins, suitable for 12V, 24V and 36V systems

* Integrated ESD and Surge Transient Voltage Suppressor (TVS) for bus pins

* TVS pro

AZKN1040T General Description

AZKN1040T is a ±12kV IEC 61000-4-2 protected Controller Area Network (CAN) transceiver IC. It serves as an interface between a CAN protocol controller (MCU) and the physical two-wire CAN bus. This device operates at 5V power supply and is fully compliant with ISO 11898-2:2016 standard for CAN FD app.

AZKN1040T Datasheet (1.58 MB)

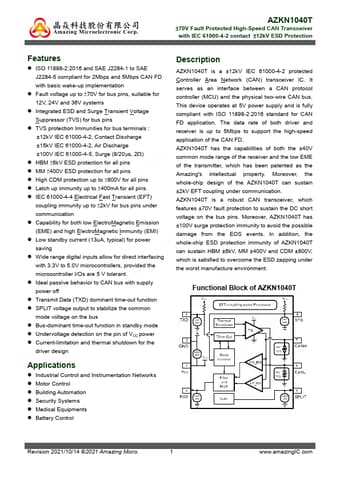

AZKN1040T Datasheet Preview — Preview of AZKN1040T PDF

Datasheet Details

Part number:

AZKN1040T

Manufacturer:

Amazing Microelectronic

File Size:

1.58 MB

Description:

High-speed can transceiver.
