FM4005G - (FM4001G - FM4007G) 1.0A Surface Mount General Purpose Rectifiers

Download the FM4005G datasheet PDF. This datasheet also covers the FM4001G variant, as both devices belong to the same (fm4001g - fm4007g) 1.0a surface mount general purpose rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Batch process design, excellent power dissipation offers. better reverse leakage current and thermal resistance.
  • Low profile surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FM4001G-AmericanFirstSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FM4005G
Manufacturer American First Semiconductor
File Size 444.53 KB
Description (FM4001G - FM4007G) 1.0A Surface Mount General Purpose Rectifiers
Datasheet download datasheet FM4005G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FM4005 GLASS PASSIVATED SILICON RECTIFIER(VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere) Rectron Semiconductor
FM4005 Glass passivated type Formosa MS
FM4005 SURFACE MOUNT STANDARD RECOVERY RECTIFIER PACELEADER
FM4005-L Chip Silicon Rectifier Formosa MS
FM4005-M Glass passivated type Formosa MS

Other Datasheets by American First Semiconductor

Part Number Description
FM4001G (FM4001G - FM4007G) 1.0A Surface Mount General Purpose Rectifiers
FM4002G (FM4001G - FM4007G) 1.0A Surface Mount General Purpose Rectifiers
FM4003G (FM4001G - FM4007G) 1.0A Surface Mount General Purpose Rectifiers
FM4004G (FM4001G - FM4007G) 1.0A Surface Mount General Purpose Rectifiers
FM4006G (FM4001G - FM4007G) 1.0A Surface Mount General Purpose Rectifiers

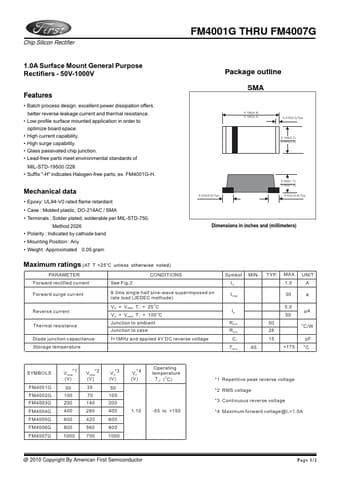

Full PDF Text Transcription

Click to expand full text
Chip Silicon Rectifier FM4001G THRU FM4007G 1.0A Surface Mount General Purpose Rectifiers - 50V-1000V Features • Batch process design, excellent power dissipation offers. better reverse leakage current and thermal resistance. • Low profile surface mounted application in order to optimize board space. • High current capability. • High surge capability. • Glass passivated chip junction. • Lead-free parts meet environmental standards of MIL-STD-19500 /228 • Suffix "-H" indicates Halogen-free parts, ex. FM4001G-H. Mechanical data • Epoxy: UL94-V0 rated flame retardant • Case : Molded plastic, DO-214AC / SMA • Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 • Polarity : Indicated by cathode band • Mounting Position : Any • Weight :Approximated 0.
