KBL410CG, KBL4005CG 4Amps Single Phase Silicon Bridge

American First Semiconductor

Description

4 Amps Single Phase Silicon Bridge KBL4005CG THRU KBL410CG .
Page www.

📥 Download Datasheet

KBL410CG Datasheet Preview — This datasheet PDF includes multiple part numbers: KBL410CG, KBL4005CG. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: KBL410CG, KBL4005CG
Manufacturer: American First Semiconductor
File Size: 1.01 MB
Datasheet: KBL4005CG-AmericanFirstSemiconductor.pdf
Description: 4Amps Single Phase Silicon Bridge
Note: This datasheet PDF includes multiple part numbers: KBL410CG, KBL4005CG.
Please refer to the document for exact specifications by model.

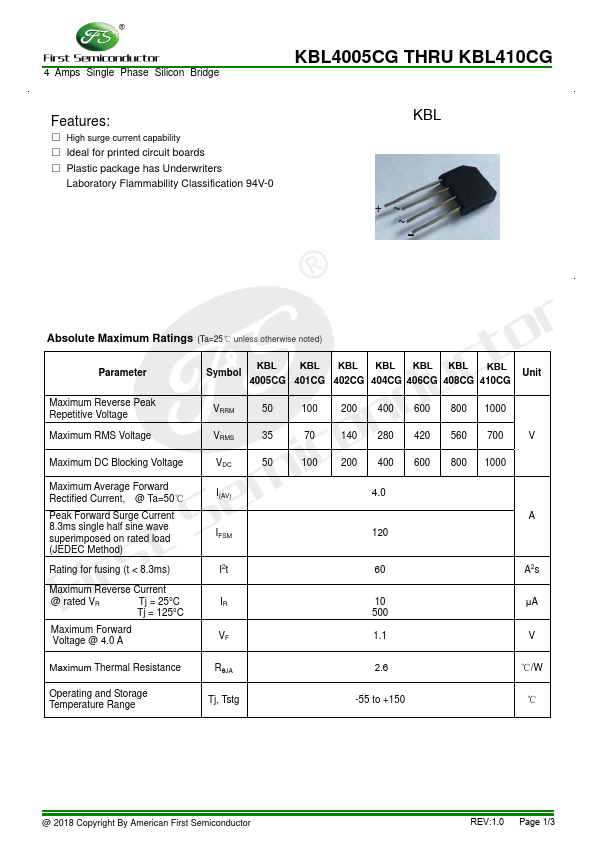

Features

* High surge current capability
* Ideal for printed circuit boards
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 KBL +~ ~- Absolute Maximum Ratings (Ta=25℃ unless otherwise noted) Parameter Maximum Reverse Peak Repetitive Voltage Maximum
