L513HD Datasheet - American Opto Plus LED

L513HD 5mm Red LED Lamp

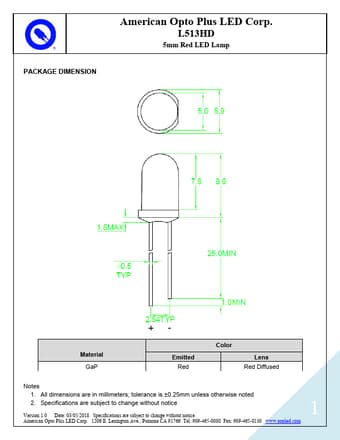

PACKAGE DIMENSION American Opto Plus LED Corp. L513HD 5mm Red LED Lamp Material GaP Emitted Red Color Lens Red Diffused Notes 1. All dimensions are in millimeters; tolerance is ±0.25mm unless otherwise noted 2. Specifications are subject to change without notice Version 1.0 Date: 03/05/2018 Specifications are subject to change without notice. American Opto Plus LED Corp. 1206 E. Lexington Ave., Pomona CA 91766 Tel: 909-465-0080 Fax: 909-465-0130 www.aopled.com 1 American Opto Plus LED Co.

L513HD-AmericanOptoPlusLED.pdf

Preview of L513HD PDF
L513HD Datasheet Preview Page 2 L513HD Datasheet Preview Page 3

Datasheet Details

Part number:

L513HD

Manufacturer:

American Opto Plus LED

File Size:

791.67 KB

Description:

5mm red led lamp.
