General Description

The SMA401LY G/W & SMC401LY G/W are 0.4 inch (10.16mm) height Single digits display.

This device utilizes Super Bright Yellow LED chip which are made from AlGalnP On a transparent GaAs, substrate.

The display has Gray face, White segment.

DEVICE PART NO SMA401LY G/W SMC401LY G/W DESCRIPTION

Key Features

0.4 inch (10.16 mm) Digit Height.
SMD type.
Low current operation.
Gray face, White segment.
RoHS compliant, Pb Free.

📥 Download Datasheet

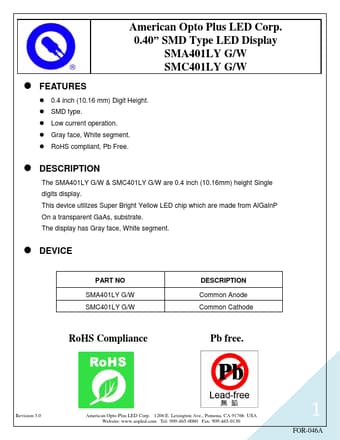

SMA401LY led display by American Opto Plus LED - Datasheet Preview

Datasheet Details

Part number	SMA401LY
Manufacturer	American Opto Plus LED
File Size	455.81 KB
Description	LED Display
Datasheet	SMA401LY Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
SMA4011	1000 TO 4000 MHz TO-8 CASCADABLE AMPLIFIER	Tyco Electronics
SMA4011	Cascadable Amplifier	MA-COM
SMA4012	1.0 TO 4.0 GHz TO-8 CASCADABLE AMPLIFIER	Tyco Electronics
SMA4012	Cascadable Amplifier	MACOM
SMA40	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR	MIC

Other Datasheets by American Opto Plus LED

Part Number	Description
SMA401LE	LED Display
SMA401LR	LED Display
SMA401W	LED Display
SMA403LR	LED Display
SMA404LR	LED Display

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

American Opto Plus LED Corp. 0.40” SMD Type LED Display SMA401LY G/W SMC401LY G/W  FEATURES  0.4 inch (10.16 mm) Digit Height.  SMD type.  Low current operation.  Gray face, White segment.  RoHS compliant, Pb Free.  DESCRIPTION The SMA401LY G/W & SMC401LY G/W are 0.4 inch (10.16mm) height Single digits display. This device utilizes Super Bright Yellow LED chip which are made from AlGalnP On a transparent GaAs, substrate. The display has Gray face, White segment.  DEVICE PART NO SMA401LY G/W SMC401LY G/W DESCRIPTION Common Anode Common Cathode RoHS Compliance Pb free. Revision 3.0 American Opto Plus LED Corp. 1206 E. Lexington Ave., Pomona, CA 91766 USA Website: www.aopled.com Tel: 909-465-0080 Fax: 909-465-0130 1 FOR-046A American Opto Plus LED Corp. 0.
