AM5766 Datasheet, Driver, Amtek Semiconductors

AM5766 Features

  • Driver 1) Two channels are voltage-type BTL drivers for actuators of tracking and focus. Two channels are voltage-type BTL driver for sled and spindle motors. It is also built-in one channel b

PDF File Details

Part number:

AM5766

Manufacturer:

Amtek Semiconductors

File Size:

117.33kb

Download:

📄 Datasheet

Description:

5-channel btl driver. PIN No Pin Name Function 1 VINFC Input for focus driver 2 TRB_1 Connect to external transistor base 3 REGO2 Regulator vol

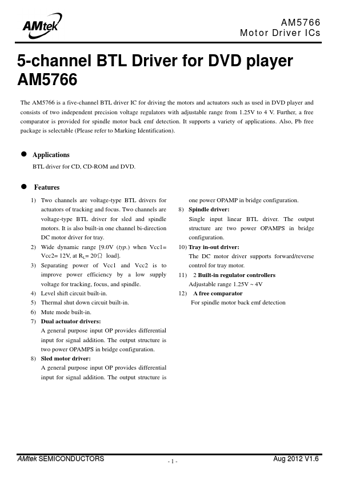

Datasheet Preview: AM5766 📥 Download PDF (117.33kb)
Page 2 of AM5766 Page 3 of AM5766

AM5766 Application

  • Applications Also, Pb free package is selectable (Please refer to Marking Identification).
  • Applications BTL driver for CD, CD-ROM and DV
