AH373

Internal Pull-up Hall Effect Latch

AH373 Features

* - Bipolar Hall effect latch sensor - 2.2V to 20V DC operation voltage - Built-in pull-up resistor - 25mA output sink current - Operating temperature:

* 40°C ~ +125°C - Package: SIP3, SOT23

* General Description AH373 is a single-digital-output Hall-effect sensor with pull-up resistor

AH373 General Description

AH373 is a single-digital-output Hall-effect sensor with pull-up resistor for high temperature operation. The device includes an on-chip Hall voltage generator for magnetic sensing, an amplifier to amplify Hall voltage, and a comparator to provide switching hysteresis for noise rejection, and an out.

AH373 Datasheet (191.61 KB)

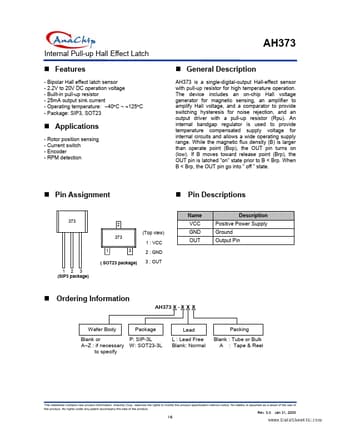

Preview of AH373 PDF

Datasheet Details

Part number:

AH373

Manufacturer:

Anachip

File Size:

191.61 KB

Description:

Internal pull-up hall effect latch.
