ATS278, Two Phase Hall Effect Latch

www.DataSheet4U.com ATS278 Two Phase Hall Effect Latch With FG Output * .
ATS278 is an integrated Hall sensor with two output drivers and rotor speed output, typically designed for electronic commutation of two-phase brush-l.

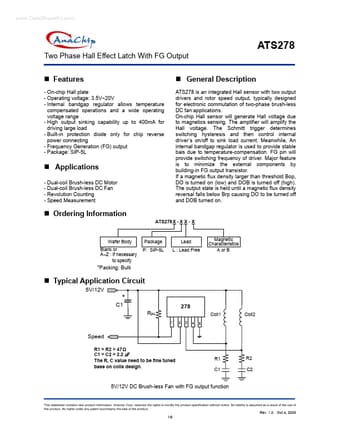

datasheet Preview Page 1 from Datasheet4u.com

ATS278_Anachip.pdf

ATS278 Datasheet Preview — Preview of ATS278 PDF

Datasheet Details

Part number:

ATS278

Manufacturer:

Anachip

File Size:

236.59 KB

Description:

Two Phase Hall Effect Latch

Features

* - On-chip Hall plate - Operating voltage: 3.5V~20V - Internal bandgap regulator allows temperature compensated operations and a wide operating voltage range - High output sinking capability up to 400mA for driving large load - Built-in protection diode only for chip reverse power connecting - Freque

Applications

* On-chip Hall sensor will generate Hall voltage due to magnetics sensing. The amplifier will amplify the Hall voltage. The Schmitt trigger determines switching hysteresis and then control internal driver’s on/off to sink load current. Meanwhile, An internal bandgap regulator is used to provide stabl
