AV4040 Datasheet - Anag

AV4040 LCD

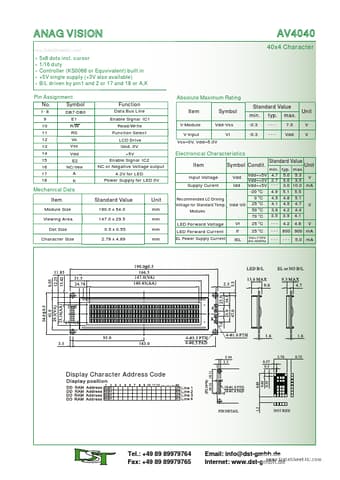

ANAG VISION www.DataSheet4U.com AV4040 40x4 Character ° ° ° ° ° 5x8 dots incl. cursor 1/16 duty Controller (KS0066 or Equvivalent) built in +5V single supply (+3V also available) B/L driven by pin1 and 2 or 17 and 18 or A,K Absolute Maximum Rating Function Data Bus Line Enable Signal IC1 Read/Write Function Select LCD Drive Gnd, 0V +5V Enable Signal IC2 NC or Negative Voltage output 4.2V for LED Power Supply for LED 0V Pin Assignment No. Symbol 1- 8 9 10 11 12 13 14 15 16 17 18 DB7-DB0 E1 R/.

AV4040 Datasheet (273.71 KB)

AV4040 Datasheet Preview — Preview of AV4040 PDF

Datasheet Details

Part number:

AV4040

Manufacturer:

Anag

File Size:

273.71 KB

Description:

Lcd.
