5B02 Datasheet, backplane equivalent, Analog Devices

5B02 Features

• Backplane Mix and Match 5B Series I/O Module Capability Factory Mutual (FM) Approved Approved for Use in Class I, Division2, Groups A, B, C, and D Locations. CE Certified: EMC Directive in Heavy

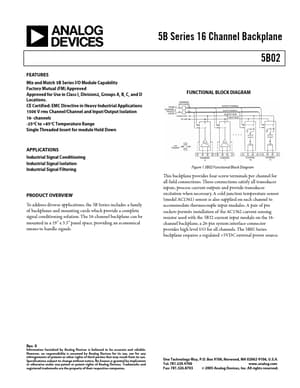

PDF File Details

Part number:

5B02

Manufacturer:

Analog Devices ↗

File Size:

209.30kb

Download:

📄 Datasheet

Description:

5b series 16 channel backplane. Model 5B02 Backplane - The 5B02 diagrammed in Figure 1, is a 16 channel backplane. It incorporates input and output buses that take a

5B02 Application

• Applications 1500 V rms Channel/Channel and Input/Output Isolation 16- channels -25oC to +85oC Temperature Range Single Threaded Insert for module H
