5B36 Datasheet, Input, Analog Devices

5B36 Features

  • Input Amplifies, Protects, Filters, and Isolates a wide variety of three-wire potentiometers and two-wire rheostats (slidewires). Generates a low-impedance output of 0 to +5V. Module circuitr

PDF File Details

Part number:

5B36

Manufacturer:

Analog Devices ↗

File Size:

712.24kb

Download:

📄 Datasheet

Description:

Isolated / potentiometer input. The 5B36 is a single-channel signal conditioning module that amplifies, isolates, filters, buffers a wide variety of three-wire poten

Datasheet Preview: 5B36 📥 Download PDF (712.24kb)

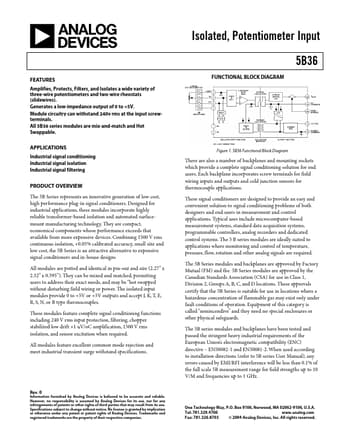

Page 2 of 5B36 Page 3 of 5B36

5B36 Application

  • Applications Industrial signal conditioning Industrial signal isolation Industrial signal filtering Figure 1. 5B36 Functional Block Diagram PRODUC
