7B47

Linearized Thermocouple Input

7B47 Features

* Interfaces, amplifies and filters input voltages from a J, K, T, E, R, S, B or N-type thermocouple. Module provides a precision output of either +1 V to +5 V or 0 V to +10 V, linear with input temperature. All 7B47 series modules are mix-and-match and Hot Swappable. FUNCTIONAL BLOCK DIAGRAM APPLIC

7B47 General Description

The 7B47 is a single-channel signal conditioning module that interfaces, amplifies and filters input voltages from a J, K, T, E, R, S, B, or N-type thermocouple and provides an isolated and protected precision output of either +1V to +5V or 0 to +10 V, linear with input temperature. High accuracy in.

7B47 Datasheet (562.21 KB)

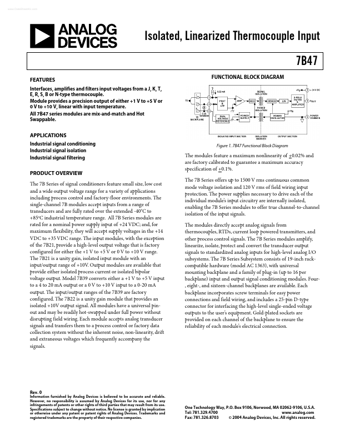

Preview of 7B47 PDF

Datasheet Details

Part number:

7B47

Manufacturer:

Analog Devices ↗

File Size:

562.21 KB

Description:

Linearized thermocouple input.
