AD1984 - High Definition Audio SoundMAX Codec

Product Overview

Analog Devices

Datasheet Details

Part number	AD1984
Manufacturer	Analog Devices
File Size	1.08 MB
Description	High Definition Audio SoundMAX Codec
Datasheet	AD1984 Datasheet

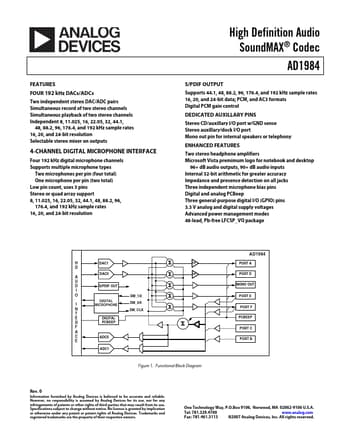

Additional preview pages of the AD1984 datasheet.

Product details

Description

9 Digital Microphone Interface Timing Specifications 12 HD Audio Widgets 16 AD1984 HD Audio Parameter 17 Outline Dimensions 20 Ordering Guide 20 REVISION HISTORY 1/07 Rev 0: Initial version Rev.0 | Page 2 of 20 | January 2007 AD1984 GENERAL DESCRIPTION The AD1984 family of audio codecs and SoundMAX® software provides superior High Definition audio quality that exceeds Vista Premium performance.The AD1984 has four 192 kHz DACs, four 192 kHz ADCs, S/PDIF output, a four-channel

Features

FOUR 192 kHz DACs/ADCs Two independent stereo DAC/ADC pairs Simultaneous record of two stereo channels Simultaneous playback of two stereo channels Independent 8, 11.025, 16, 22.05, 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz sample rates 16, 20, and 24-bit resolution Selectable stereo mixer on outputs High Definition Audio SoundMAX® Codec AD1984 S/PDIF OUTPUT Supports 44.1, 48, 88.2, 96, 176.4, and 192 kHz sample rates 16, 20, and 24-bit data; PCM, and AC3 formats Digital PCM gain control DEDI.
