AD2S99 Datasheet, Oscillator, Analog Devices

AD2S99 Features

  • Oscillator Programmable Sinusoidal Oscillator Synthesized Synchronous Reference Output Programmable Output Frequency Range: 2 kHz
      –20 kHz “Loss-of-Signal” Indicator 20-Pin PLCC Pack

PDF File Details

Part number:

AD2S99

Manufacturer:

Analog Devices ↗

File Size:

317.55kb

Download:

📄 Datasheet

Description:

Programmable oscillator. The AD2S99 programmable sinusoidal oscillator provides sine wave excitation for resolvers and a wide variety of ac transducers. The

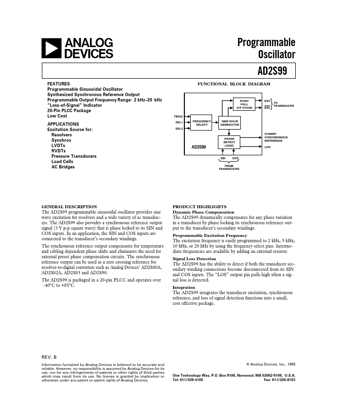

Datasheet Preview: AD2S99 📥 Download PDF (317.55kb)
Page 2 of AD2S99 Page 3 of AD2S99

AD2S99 Application

  • Applications Excitation Source for: Resolvers Synchros LVDTs RVDTs Pressure Transducers Load Cells AC Bridges FBIAS SEL1 SEL2 FREQUENCY SELECT Prog
