AD602, AD6, Variable Gain Amplifiers

.
The AD600/AD6021 dual-channel, low noise, variable gain amplifiers are optimized for use in ultrasound imaging systems but are applicable to any appli.

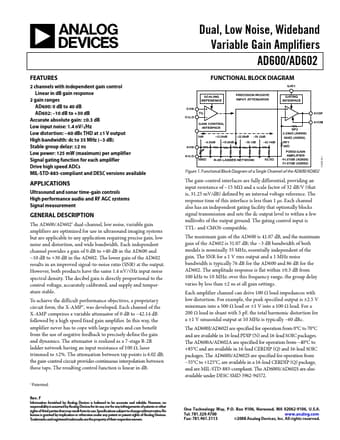

AD6-00.pdf

AD602 Datasheet Preview — This datasheet PDF includes multiple part numbers: AD602, AD6. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AD602, AD6

Manufacturer:

Analog Devices ↗

File Size:

464.26 KB

Description:

Variable Gain Amplifiers

Note:

This datasheet PDF includes multiple part numbers: AD602, AD6.
Please refer to the document for exact specifications by model.

Features

* 2 channels with independent gain control Linear in dB gain response 2 gain ranges AD600: 0 dB to 40 dB AD602:
* 10 dB to +30 dB Accurate absolute gain: ±0.3 dB Low input noise: 1.4 nV/√Hz Low distortion:
* 60 dBc THD at ±1 V output High bandwidth: dc to 35 MHz (
* 3 dB) Stable gr
