AD6426 - Enhanced GSM Processor

Datasheet Summary

Description

The AD6426 Enhanced GSM Processor (EGSMP) is the central component of the highly integrated AD20msp425 GSM Chipset.

Features

  • Complete Single Chip GSM Processor Channel Codec Subsystem including Channel Coder/Decoder Interleaver/De-interleaver Encryption/Decryption Control Processor Subsystem including 16-bit Control Processor (H8/300H) Parallel and Serial Display Interface Keypad Interface EEPROM Interface SIM-Interface Universal System Connector Interface Interface to AD6425 Control of Radio Subsystem Programmable backlight duty cycle Real Time Clock with Alarm Battery ID Chip Interface DSP Subsystem including 16-bit.

📥 Download Datasheet

Datasheet preview – AD6426

Datasheet Details

Part number AD6426
Manufacturer Analog Devices
File Size 506.46 KB
Description Enhanced GSM Processor
Datasheet download datasheet AD6426 Datasheet
Additional preview pages of the AD6426 datasheet.

📁 Similar Datasheet

  • AD6025GP - Fan (ADDA)
  • AD60D60 - 60V 60A Ultra Low VF Schottky (AP Semiconductor)
  • AD620ARZ-REEL - Low Cost Precision Instrument Amplifier (tokmas)
  • AD62384AF - 8CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER (Toshiba Semiconductor)
  • AD62384AP - 8CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER (Toshiba Semiconductor)
  • AD62384F - 8CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER (Toshiba Semiconductor)
  • AD62385AF - 8CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER (Toshiba Semiconductor)
  • AD62385AP - 8CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER (Toshiba Semiconductor)
  • AD62385F - 8CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER (Toshiba Semiconductor)
  • AD62386AF - 8CH LOW INPUT ACTIVE DARLINGTON SINK DRIVER (Toshiba Semiconductor)
Other Datasheets by Analog Devices
  • AD642 - Precision/ Low Cost Dual BiFET Op Amp
  • AD640 - DC-Coupled Demodulating 120 MHz Logarithmic Amplifier
  • AD6402 - IF Transceiver Subsystem
  • AD641 - 250 MHz Demodulating Logarithmic Amplifier
  • AD6411 - DECT RF Transceiver
  • AD6432 - GSM 3 V Transceiver IF Subsystem
  • AD6439 - Discrete Multitone (DMT) Coprocessor
  • AD644 - Dual High Speed/ Implanted BiFET Op Amp

Full PDF Text Transcription

Click to expand full text

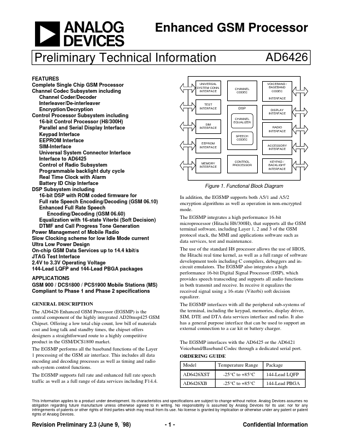

a Enhanced GSM Processor AD6426 CHANNEL CODEC VOICEBAND / BASEBAND CODEC INTERFACE TEST INTERFACE Preliminary Technical Information FEATURES Complete Single Chip GSM Processor Channel Codec Subsystem including Channel Coder/Decoder Interleaver/De-interleaver Encryption/Decryption Control Processor Subsystem including 16-bit Control Processor (H8/300H) Parallel and Serial Display Interface Keypad Interface EEPROM Interface SIM-Interface Universal System Connector Interface Interface to AD6425 Control of Radio Subsystem Programmable backlight duty cycle Real Time Clock with Alarm Battery ID Chip Interface DSP Subsystem including 16-bit DSP with ROM coded firmware for Full rate Speech Encoding/Decoding (GSM 06.10) Enhanced Full Rate Speech Encoding/Decoding (GSM 06.
