AD670 Datasheet, Adc, Analog Devices

AD670 Features

  • Adc Complete 8-Bit Signal Conditioning A/D Converter Including Instrumentation Amp and Reference Microprocessor Bus Interface 10 ␮ s Conversion Speed Flexible Input Stage: Instrumentation A

PDF File Details

Part number:

AD670

Manufacturer:

Analog Devices ↗

File Size:

364.03kb

Download:

📄 Datasheet

Description:

Low cost signal conditioning 8-bit adc. The AD670 is a complete 8-bit signal conditioning analogto-digital converter. It consists of an instrumentation amplifier front end

Datasheet Preview: AD670 📥 Download PDF (364.03kb)

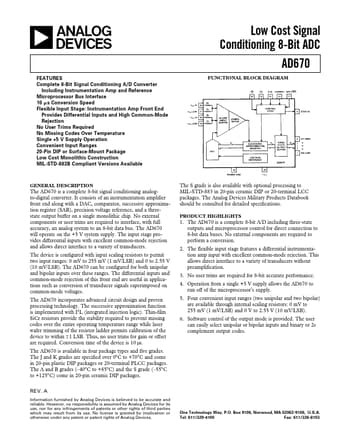

Page 2 of AD670 Page 3 of AD670

AD670 Application

  • Applications such as conversion of transducer signals superimposed on common-mode voltages. The AD670 incorporates advanced circuit design and prove
