AD7304 Datasheet, Dac, Analog Devices

AD7304 Features

• Dac Four 8-Bit DACs in One Package +3 V, +5 V and ؎ 5 V Operation Rail-to-Rail REF-Input to Voltage Output Swing 2.6 MHz Reference Multiplying Bandwidth Compact 1.1 mm Height TSSOP 16-/20-L

PDF File Details

Part number:

AD7304

Manufacturer:

Analog Devices ↗

File Size:

693.36kb

Download:

📄 Datasheet

Description:

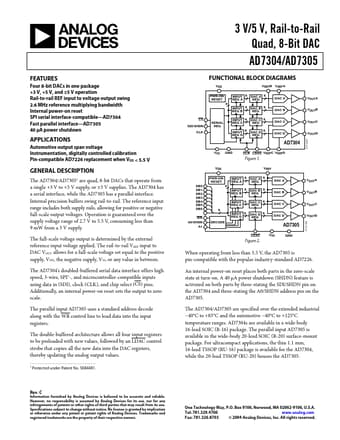

+3 v/+5 v/ rail-to-rail quad/ 8-bit dac. The AD7304/AD7305 are quad, 8-bit DACs that operate from a single +3 V to +5 V supply or ± 5 V supplies. The AD7304 has a serial int

AD7304 Application

• Applications Automotive Output Span Voltage Instrumentation, Digitally Controlled Calibration Pin-Compatible AD7226 Replacement when V DD < 5.5 V VD
