AD7327

12-Bit Plus Sign ADC

AD7327 Features

* 12-bit plus sign SAR ADC True bipolar input ranges Software-selectable input ranges ±10 V, ±5 V, ±2.5 V, 0 V to +10 V 500 kSPS throughput rate Eight analog input channels with channel sequencer Single-ended, true differential, and pseudo differential analog input capability High analog input impedan

AD7327 General Description

The AD7327 is an 8-channel, 12-bit plus sign successive approximation ADC designed on the iCMOS (industrial CMOS) process. iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance anal.

AD7327 Datasheet (693.65 KB)

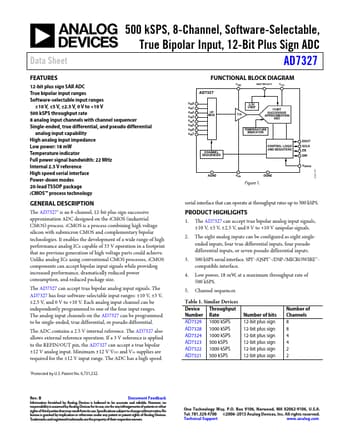

Preview of AD7327 PDF

Datasheet Details

Part number:

AD7327

Manufacturer:

Analog Devices ↗

File Size:

693.65 KB

Description:

12-bit plus sign adc.
