AD7541A Datasheet, Dac, Analog Devices

AD7541A Features

  • Dac Improved version of the obsoleted product, AD7541 Full 4 quadrant multiplication 12-bit linearity (endpoint) All parts guaranteed monotonic TTL/CMOS compatible Protection Schottky diode

PDF File Details

Part number:

AD7541A

Manufacturer:

Analog Devices ↗

File Size:

253.22kb

Download:

📄 Datasheet

Description:

Monolithic multiplying dac. The AD7541A is a high performance, 12-bit monolithic multiplying digital-to-analog converter (DAC). It is fabricated using advanced,

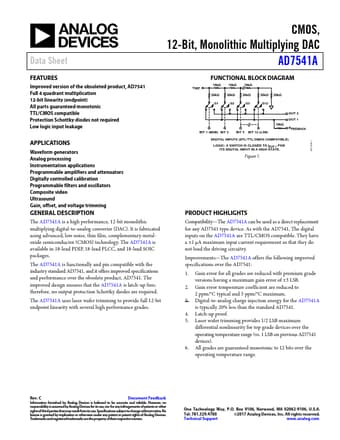

Datasheet Preview: AD7541A 📥 Download PDF (253.22kb)
Page 2 of AD7541A Page 3 of AD7541A

AD7541A Application

  • Applications Waveform generators Analog processing Instrumentation applications Programmable amplifiers and attenuators Digitally controlled calibra
