AD7606BBCHIPS - 8-Channel DAS

Description

Specifications 4 Timing Specifications 6 Universal Timing Specifications 6 Parallel Mode Timing Specifications 8 REVISION HISTORY 2/2022 Revision 0: Initial Version AD7606BBCHIPS Serial Mode Timing Specifications 9 Absolute Maximum Ratings 11 Electrostatic Discharge (ESD) Ratings11 ESD Cau

Features

  • 16-bit ADC with 800 kSPS on all channels.
  • Input buffer with 5 MΩ analog input impedance.
  • 1 ppm/°C typical positive and negative full-scale error drift.
  • 40°C to +125°C operating temperature range.
  • Single 5 V analog supply and 1.71 V to 3.6 V VDRIVE supply.
  • ±21 V input clamp protection with 8 kV ESD.
  • Per channel selectable analog input ranges.
  • Single-ended, bipolar: ±10 V, ±5 V, and ±2.5 V.
  • Per channel system phase, offset, and gain calibratio.

📥 Download Datasheet

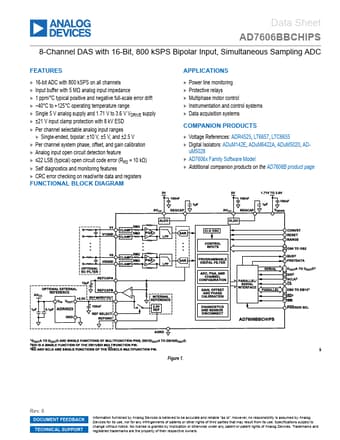

Datasheet preview – AD7606BBCHIPS

Datasheet Details

Part number AD7606BBCHIPS
Manufacturer Analog Devices
File Size 709.97 KB
Description 8-Channel DAS
Datasheet download datasheet AD7606BBCHIPS Datasheet
