AD7612

16-bit charge redistribution successive approximation register

AD7612 Features

* Multiple pins/software programmable input ranges: 5 V, 10 V, ±5 V, ±10 V Pins or serial SPI®-compatible input ranges/mode selection Throughput 750 kSPS (warp mode) 600 kSPS (normal mode) 500 kSPS (impulse mode) INL: ±0.75 LSB typical, ±1.5 LSB maximum (±23 ppm of FSR) 16-bit resolution with no missi

AD7612 General Description

The AD7612 is a 16-bit charge redistribution successive approximation register (SAR), architecture analog-to-digital converter (ADC) fabricated on Analog Devices, Inc.’s iCMOS high voltage process. The device is configured through hardware or via a dedicated write only serial configuration port for .

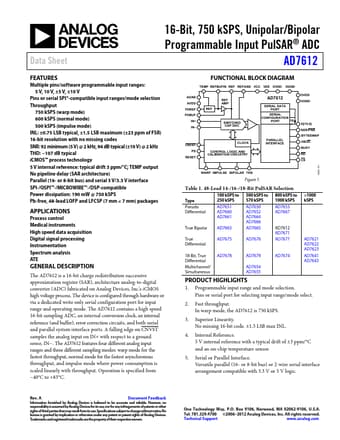

AD7612 Datasheet (518.86 KB)

Preview of AD7612 PDF

Datasheet Details

Part number:

AD7612

Manufacturer:

Analog Devices ↗

File Size:

518.86 KB

Description:

16-bit charge redistribution successive approximation register.
