AD7666

16-Bit 500kSPS PulSAR Unipolar ADC

AD7666 Features

* Throughput: 500 kSPS INL: ±2.5 LSB Max (±0.0038% of Full Scale) 16 Bits Resolution with No Missing Codes Analog Input Voltage Range: 0 V to 2.5 V No Pipeline Delay Parallel and Serial 5 V/3 V Interface SPITM/QSPITM/MICROWIRETM/DSP Compatible Single 5 V Supply Operation Power Dissipation 67 mW Typ wi

AD7666 General Description

The AD7666 is a 16-bit, 500 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. The part contains a high-speed 16-bit sampling ADC, an internal conversion clock, internal reference, error correction circuits, and both serial and parallel system.

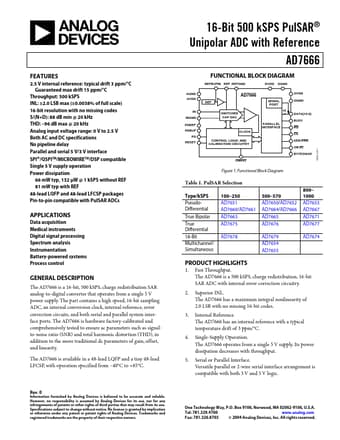

AD7666 Datasheet (513.43 KB)

Preview of AD7666 PDF

Datasheet Details

Part number:

AD7666

Manufacturer:

Analog Devices ↗

File Size:

513.43 KB

Description:

16-bit 500ksps pulsar unipolar adc.
