AD767 - Microprocessor-Compatible 12-Bit D/A Converter

PRODUCT HIGHLIGHTS The AD767 is a complete voltage output 12-bit digital-toanalog converter including a high stability buried Zener reference and input latch on a single chip.

The converter uses 12 precision high-speed bipolar current steering switches and a laser-trimmed thin-film resistor networ

AD767 Features

* Complete 12-Bit D/A Function On-Chip Output Amplifier High Stability Buried Zener Reference Fast 40 ns Write Pulse 0.3" Skinny DIP and PLCC Packages Single Chip Construction Monotonicity Guaranteed Over Temperature Settling Time: 3 ␮ s max to 1/2 LSB Guaranteed for Operation with ؎12 V or ؎15 V Supp

AD7-67.pdf

This datasheet PDF includes multiple part numbers: AD767, AD7. Please refer to the document for exact specifications by model.

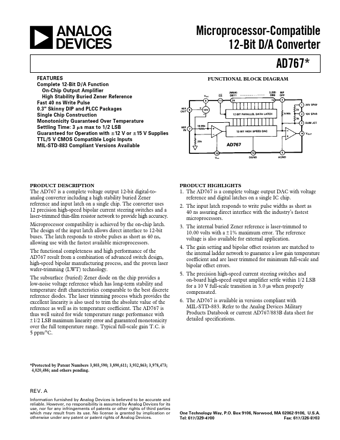

AD767 Datasheet Preview Page 2 AD767 Datasheet Preview Page 3

Datasheet Details

Part number:

AD767, AD7

Manufacturer:

Analog Devices ↗

File Size:

289.48 KB

Description:

Microprocessor-compatible 12-bit d/a converter.

Note:

This datasheet PDF includes multiple part numbers: AD767, AD7.
Please refer to the document for exact specifications by model.
