AD7742 - Single and Multichannel/ Synchronous Voltage-to-Frequency Converters

Download the AD7742 datasheet PDF (AD7 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for single and multichannel/ synchronous voltage-to-frequency converters.

Description

The AD7741/AD7742 are a new generation of synchronous voltage-to-frequency converters (VFCs).

The AD7741 is a single-channel version in an 8-lead package (SOIC/DIP) and the AD7742 is a multichannel version in a 16-lead package (SOIC/ DIP).

Features

  • AD7741: One Single-Ended Input Channel AD7742: Two Differential or Three Pseudo-Differential Input Channels Integral Nonlinearity of 0.012% at fOUT(Max) = 2.75 MHz (AD7742) and at fOUT(Max) = 1.35 MHz (AD7741) Single +5 V Supply Operation Buffered Inputs Programmable Gain Analog Front-End On-Chip +2.5 V Reference Internal/External Reference Option Power Down to 35 ␮ A Max Minimal External Components Required 8-Lead and 16-Lead DIP and SOIC Packages.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AD7-741.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AD7742
Manufacturer Analog Devices
File Size 131.39 KB
Description Single and Multichannel/ Synchronous Voltage-to-Frequency Converters
Datasheet download datasheet AD7742 Datasheet

📁 Similar Datasheet

  • AD7216N2L - AC-DC / External Freestanding Adapter (Emerson)
  • AD7315 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7318 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7325 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7328 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7330 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7333 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7336 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7344 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7350 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
Other Datasheets by Analog Devices
  • AD7740 - Synchronous Voltage-to-Frequency Converter
  • AD7741 - Single and Multichannel/ Synchronous Voltage-to-Frequency Converters
  • AD7745 - 24-Bit Capacitance-to-Digital Converter
  • AD7746 - 24-Bit Capacitance-to-Digital Converter
  • AD7747 - 24-Bit Capacitance-to-Digital Converter
  • AD774B - Complete 12-Bit A/D Converters
  • AD7701 - 16-Bit A/D Converter
  • AD7703 - 20-Bit A/D Converter

Full PDF Text Transcription

Click to expand full text

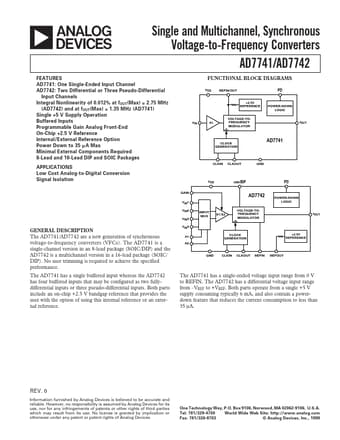

a Single and Multichannel, Synchronous Voltage-to-Frequency Converters AD7741/AD7742 FUNCTIONAL BLOCK DIAGRAMS VDD REFIN/OUT PD +2.5V REFERENCE FEATURES AD7741: One Single-Ended Input Channel AD7742: Two Differential or Three Pseudo-Differential Input Channels Integral Nonlinearity of 0.012% at fOUT(Max) = 2.75 MHz (AD7742) and at fOUT(Max) = 1.35 MHz (AD7741) Single +5 V Supply Operation Buffered Inputs Programmable Gain Analog Front-End On-Chip +2.
