AD7762

109 dB Sigma-Delta ADC

AD7762 Features

* 120 dB dynamic range at 78 kHz output data rate 109 dB dynamic range at 625 kHz output data rate 112 dB SNR at 78 kHz output data rate 106 dB SNR at 625 kHz output data rate 625 kHz maximum fully filtered output word rate Programmable over-sampling rate (32× to 256×) Fully differential modulator inp

AD7762 General Description

The AD7762 is a high performance, 24-bit Σ-Δ analog-todigital converter (ADC). It combines wide input bandwidth and high speed with the benefits of Σ-Δ conversion with a performance of 106 dB SNR at 625 kSPS, making it ideal for high speed data acquisition. Wide dynamic range combined with significa.

AD7762 Datasheet (559.61 KB)

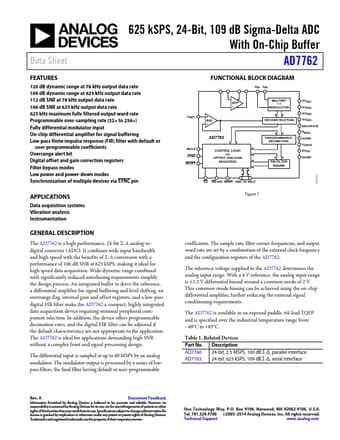

Preview of AD7762 PDF

Datasheet Details

Part number:

AD7762

Manufacturer:

Analog Devices ↗

File Size:

559.61 KB

Description:

109 db sigma-delta adc.
