AD7804, AD7, +3.3 V to +5 V Quad/Octal 10-Bit DACs

a .
+3. FUNCTIONAL BLOCK DIAGRAMS AVDD DVDD REFOUT REFIN AVDD DIVIDER COMP CHANNEL D C.

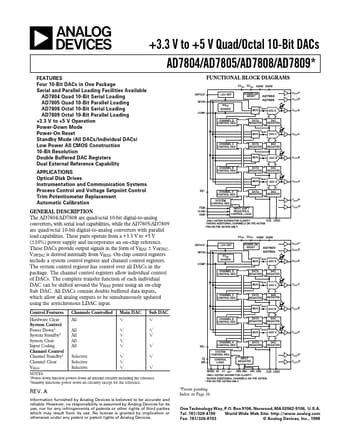

AD7-804.pdf

AD7804 Datasheet Preview — This datasheet PDF includes multiple part numbers: AD7804, AD7. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AD7804, AD7

Manufacturer:

Analog Devices ↗

File Size:

300.12 KB

Description:

+3.3 V to +5 V Quad/Octal 10-Bit DACs

Note:

This datasheet PDF includes multiple part numbers: AD7804, AD7.
Please refer to the document for exact specifications by model.

Features

* Four 10-Bit DACs in One Package Serial and Parallel Loading Facilities Available AD7804 Quad 10-Bit Serial Loading AD7805 Quad 10-Bit Parallel Loading AD7808 Octal 10-Bit Serial Loading AD7809 Octal 10-Bit Parallel Loading +3.3 V to +5 V Operation Power-Down Mode Power-On Reset Standby Mode (All DAC
