AD790 - Precision Comparator

Description

The AD790 is a fast (45 ns), precise voltage comparator, with a number of

Features

  • 45 ns max Propagation Delay Single 5 V or Dual ؎15 V Supply Operation CMOS or TTL Compatible Output 250 ␮V max Input Offset Voltage 500 ␮V max Input Hysteresis Voltage 15 V max Differential Input Voltage Onboard Latch 60 mW Power Dissipation Available in 8-Pin Plastic and Hermetic Cerdip Packages Available in Tape and Reel in Accordance with EIA-481A Standard.

📥 Download Datasheet

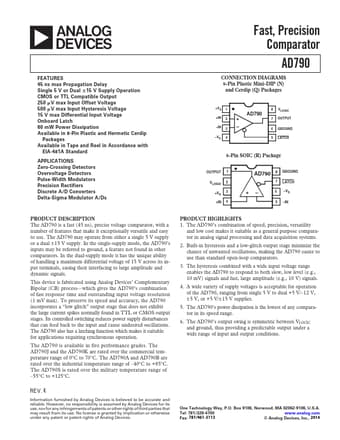

Datasheet preview – AD790

Datasheet Details

Part number AD790
Manufacturer Analog Devices
File Size 348.74 KB
Description Precision Comparator
Datasheet download datasheet AD790 Datasheet
Additional preview pages of the AD790 datasheet.

📁 Similar Datasheet

  • AD7216N2L - AC-DC / External Freestanding Adapter (Emerson)
  • AD7315 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7318 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7325 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7328 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7330 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7333 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7336 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7344 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7350 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
Other Datasheets by Analog Devices

Full PDF Text Transcription

Click to expand full text
a FEATURES 45 ns max Propagation Delay Single 5 V or Dual ؎15 V Supply Operation CMOS or TTL Compatible Output 250 ␮V max Input Offset Voltage 500 ␮V max Input Hysteresis Voltage 15 V max Differential Input Voltage Onboard Latch 60 mW Power Dissipation Available in 8-Pin Plastic and Hermetic Cerdip Packages Available in Tape and Reel in Accordance with EIA-481A Standard APPLICATIONS Zero-Crossing Detectors Overvoltage Detectors Pulse-Width Modulators Precision Rectifiers Discrete A/D Converters Delta-Sigma Modulator A/Ds Fast, Precision Comparator AD790 CONNECTION DIAGRAMS 8-Pin Plastic Mini-DIP (N) and Cerdip (Q) Packages +VS 1 +IN 2 –IN 3 –VS 4 AD790 + – 8 VLOGIC 7 OUTPUT 6 GROUND 5 LATCH 8-Pin SOIC (R) Package OUTPUT 1 VLOGIC 2 +VS 3 +IN 4 + AD790 8 GROUND 7 LATCH – 6 –VS 5 –IN
