AD7983

1.33 MSPS PulSAR ADC

AD7983 Features

* www.datasheet4u.com 16-bit resolution with no missing codes Throughput: 1.33 MSPS Low power dissipation: 10.5 mW typical @ 1.33 MSPS INL: ±0.6 LSB typical, ±1.0 LSB maximum SINAD: 91.6 dB @ 10 kHz THD:

* 115 dB @ 10 kHz Pseudo differential analog input range 0 V to VREF with VREF between 2.9

AD7983 General Description

The AD7983 is a 16-bit, successive approximation, analog-todigital converter (ADC) that operates from a single power supply, VDD. It contains a low power, high speed, 16-bit sampling ADC and a versatile serial interface port. On the CNV rising edge, it samples an analog input IN+ between 0 V to REF .

AD7983 Datasheet (529.15 KB)

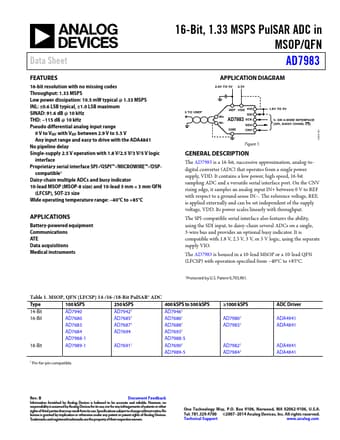

Preview of AD7983 PDF

Datasheet Details

Part number:

AD7983

Manufacturer:

Analog Devices ↗

File Size:

529.15 KB

Description:

1.33 msps pulsar adc.
