AD8015 Datasheet, Amplifier, Analog Devices

AD8015 Features

  • Amplifier Low Cost, Wide Bandwidth, Low Noise Bandwidth: 240 MHz Pulse Width Modulation: 500 ps Rise Time/Fall Time: 1.5 ns Input Current Noise: 3.0 pA/√ Hz @ 100 MHz Total Input RMS Noise: 26.5

PDF File Details

Part number:

AD8015

Manufacturer:

Analog Devices ↗

File Size:

153.01kb

Download:

📄 Datasheet

Description:

Wideband/differential output transimpedance amplifier. 5.0E+3 The AD8015 is a wide bandwidth, single supply transimpedance amplifier optimized for use in a fiber optic receiver circuit.

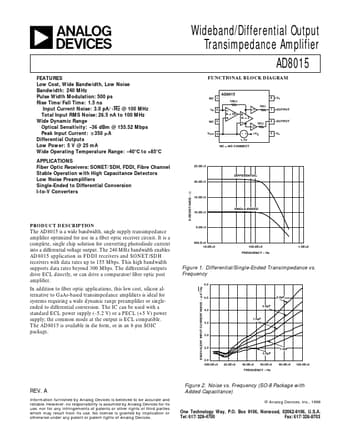

Datasheet Preview: AD8015 📥 Download PDF (153.01kb)
Page 2 of AD8015 Page 3 of AD8015

AD8015 Application

  • Applications Fiber Optic Receivers: SONET/SDH, FDDI, Fibre Channel Stable Operation with High Capacitance Detectors Low Noise Preamplifiers Single-E
