AD8039-EP Datasheet, Amplifier, Analog Devices

AD8039-EP Features

  • Amplifier Low power: 1 mA quiescent current per amplifier High speed
  • 3 dB bandwidth (G = +1): 350 MHz Slew rate: 425 V/μs Low cost Low noise 8 nV/√Hz at 100 kHz 600 fA/√Hz at 100 kHz Low

PDF File Details

Part number:

AD8039-EP

Manufacturer:

Analog Devices ↗

File Size:

161.20kb

Download:

📄 Datasheet

Description:

350 mhz voltage feedback amplifier. The AD8039-EP dual amplifier is a high speed (350 MHz) voltage feedback amplifier with an exceptionally low quiescent current of 1.0

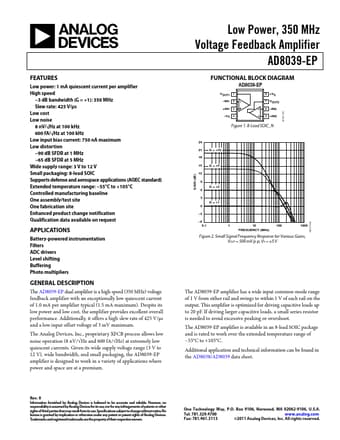

Datasheet Preview: AD8039-EP 📥 Download PDF (161.20kb)
Page 2 of AD8039-EP Page 3 of AD8039-EP

AD8039-EP Application

  • Applications (AQEC standard) Extended temperature range:
  • 55°C to +105°C Controlled manufacturing baseline One assembly/test site One fabric
