AD8598

Dual 7 ns Single Supply Comparator

Analog Devices

AD8598 Features

* 7 ns Propagation Delay Single Supply Operation: +3 V to +10 V Low Power Symmetrical Layout Latch Function TSSOP Packages APPLICATIONS Clock Recovery and Clock Distribution High Speed Data Line Receivers Phase Detectors Digital Communications I and Q Detection High Speed Sampling Upgrade for MAX912 S

AD8598 General Description

Dual 7 ns Single Supply Comparator AD8598 PIN CONFIGURATIONS N-16, RU-16 and R-16A QA 1 QA 2 GND 3 LEA 4 NC 5 V

* 6 IN A

* 7 IN A+ 8 16 15 14 QB QB GND LEB NC V+ IN B

* IN B+ AD8598 TOP VIEW (Not to Scale) 13 12 11 10 9 NC = NO CONNECT The AD8598 is a dual 7 ns comparator .

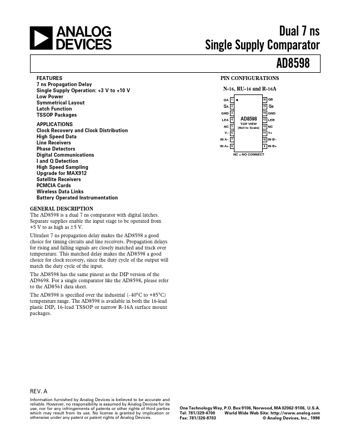

AD8598 Datasheet (137.06 KB)

AD8598 Datasheet Preview — Preview of AD8598 PDF

Datasheet Details

Part number:

AD8598

Manufacturer:

Analog Devices ↗

File Size:

137.06 KB

Description:

Dual 7 ns single supply comparator.
