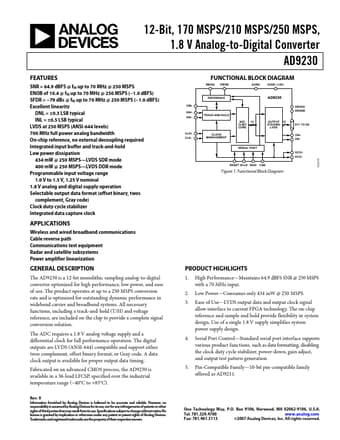

FEATURES SNR = 64.9 d BFS @ f IN up to 70 MHz @ 250 MSPS ENOB of 10.4 @ f IN up to 70 MHz @ 250 MSPS (- 1.0 d BFS) SFDR = - 79 d Bc @ f IN up to 70 MHz @ 250 MSPS (- 1.0 d BFS) Excellent linearity DNL = ±0.3 LSB typical INL = ±0.5 LSB typical LVDS at 250 MSPS (ANSI-644 levels) 700 MHz full power analog bandwidth On-chip reference, no external decoupling required Integrated input buffer and track-and-hold Low power dissipation 434 m W @ 250 MSPS- LVDS SDR mode 400 m W @ 250 MSPS- LVDS DDR mode Programmable input voltage range 1.0 V to 1.5 V, 1.25 V nominal 1.8 V analog and digital supply operation Selectable output data format (offset binary, twos plement, Gray code) Clock duty cycle stabilizer Integrated data capture clock APPLICATIONS Wireless and wired broadband munications Cable reverse path munications test equipment Radar and satellite subsystems Power amplifier linearization GENERAL DESCRIPTION The AD9230 is a 12-bit monolithic sampling analog-to-digital converter optimized for high...
