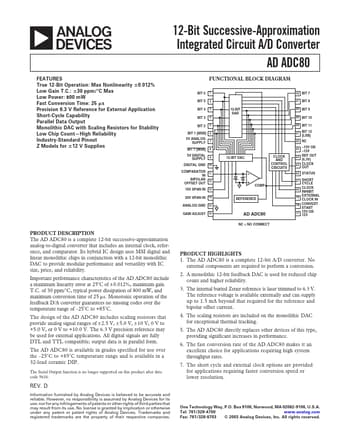

ADC80 - 12-BIT SUCCESSIVE APPROXIMATION INTERATED CIRCUIT A/D CONVERTER

The AD ADC80 is a complete 12-bit successive-approximation analog-to-digital converter that includes an internal clock, reference, and comparator. Its hybrid IC design uses MSI digital and linear monolithic chips in conjunction with a 12-bit monolithic DAC to provide modular performance and versatil.

ADC80 Features

* True 12-Bit Operation: Max Nonlinearity ؎0.012% Low Gain T.C.: ؎30 ppm/؇C Max Low Power: 800 mW Fast Conversion Time: 25 ␮s Precision 6.3 V Reference for External Application Short-Cycle Capability Parallel Data Output Monolithic DAC with Scaling Resistors for Stability Low Chip Count

* High R
