ADE7751AAN-REF - Energy Metering

Product Overview

Analog Devices

Part number	ADE7751AAN-REF
Manufacturer	Analog Devices
File Size	422.91 KB
Description	Energy Metering
Datasheet	ADE7751AAN-REF Datasheet
Additional preview pages of the ADE7751AAN-REF datasheet.

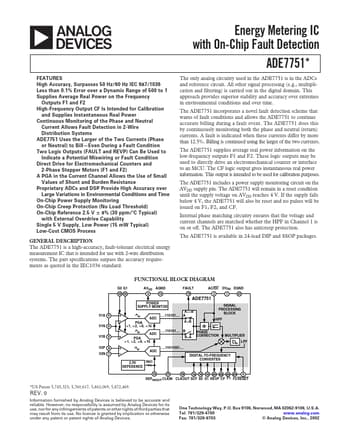

Energy Metering IC with On-Chip Fault Detection ADE7751 The only analog circuitry used in the ADE7751 is in the ADCs and reference circuit.

High Accuracy, Surpasses 50 Hz/60 Hz IEC 687/1036 Less than 0.1% Error over a Dynamic Range of 500 to 1 Supplies Average Real Power on the Frequency Outputs F1 and F2 High-Frequency Output CF Is Intended for Calibration and Supplies Instantaneous Real Power Continuous Monitoring of the Phase and Neutral Current Allows Fault Detection in 2-Wire Distribution Systems ADE7751 Uses the Larger of the Two Currents (Phase or Neutral) to Bill.
Even During a Fault Condition Two Logic Outputs (FAULT.
