ADF5356 - Microwave Wideband Synthesizer

Datasheet Summary

Description

The ADF5356 allows implementation of fractional-N or integer N phase-locked loop (PLL) frequency synthesizers when used with an external loop filter and an external reference frequency.

Features

  • RF output frequency range: 53.125 MHz to 13,600 MHz.
  • Noise floor integer channel:.
  • 227 dBc/Hz.
  • Noise floor fractional channel:.
  • 225 dBc/Hz.
  • Integrated rms jitter (1 kHz to 20 MHz): 97 fs for 6 GHz output.
  • Fractional-N synthesizer and integer N synthesizer.
  • Pin compatible to the ADF5355.
  • High resolution, 52-bit modulus.
  • Phase frequency detector (PFD) operation to 125 MHz.
  • Reference input frequency operation to 600 MHz.
  • Maintains f.

📥 Download Datasheet

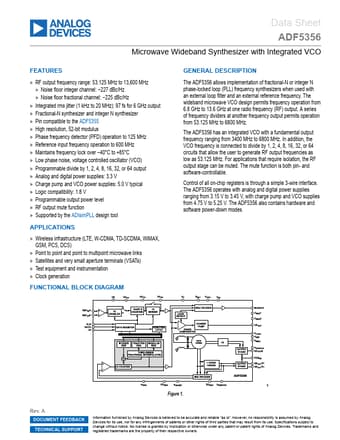

Datasheet preview – ADF5356

Datasheet Details

Part number ADF5356
Manufacturer Analog Devices
File Size 5.16 MB
Description Microwave Wideband Synthesizer
Datasheet download datasheet ADF5356 Datasheet
Additional preview pages of the ADF5356 datasheet.

📁 Similar Datasheet

Other Datasheets by Analog Devices
  • ADF5355 - Microwave Wideband Synthesizer
  • ADF5000 - 4 GHz to 18 GHz Divide-by-2 Prescaler
  • ADF5001 - 4 GHz to 18 GHz Divide-by-4 Prescaler
  • ADF5002 - 4GHz to 18GHz Divide-by-8 Prescaler
  • ADF5610 - Microwave Wideband Synthesizer
  • ADF5709 - MMIC VCO
  • ADF5901 - 24GHz VCO/PGA
  • ADF5902 - Multichannel FMCW Radar Transmitter

Full PDF Text Transcription

Click to expand full text
Data Sheet ADF5356 Microwave Wideband Synthesizer with Integrated VCO FEATURES ► RF output frequency range: 53.125 MHz to 13,600 MHz ► Noise floor integer channel: −227 dBc/Hz ► Noise floor fractional channel: −225 dBc/Hz ► Integrated rms jitter (1 kHz to 20 MHz): 97 fs for 6 GHz output ► Fractional-N synthesizer and integer N synthesizer ► Pin compatible to the ADF5355 ► High resolution, 52-bit modulus ► Phase frequency detector (PFD) operation to 125 MHz ► Reference input frequency operation to 600 MHz ► Maintains frequency lock over −40°C to +85°C ► Low phase noise, voltage controlled oscillator (VCO) ► Programmable divide by 1, 2, 4, 8, 16, 32, or 64 output ► Analog and digital power supplies: 3.3 V ► Charge pump and VCO power supplies: 5.0 V typical ► Logic compatibility: 1.
