ADG1421 Datasheet, Switches, Analog Devices

ADG1421 Features

• Switches 2.1 Ω on resistance 0.5 Ω maximum on resistance flatness Up to 250 mA continuous current Fully specified at +12 V, ±15 V, ±5 V No VL supply required 3 V logic-compatible inputs Rail-to-

PDF File Details

Part number:

ADG1421

Manufacturer:

Analog Devices ↗

File Size:

509.78kb

Download:

📄 Datasheet

Description:

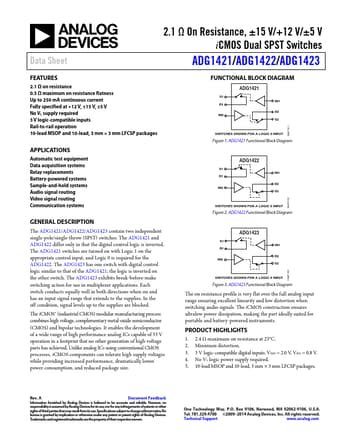

Icmos dual spst switches. The ADG1421/ADG1422/ADG1423 contain two independent single-pole/single-throw (SPST) switches. The ADG1421 and ADG1422 differ only in

ADG1421 Application

• Applications Automatic test equipment Data acquisition systems Relay replacements Battery-powered systems Sample-and-hold systems Audio signal routi
