ADG612 Datasheet, Switches, Analog Devices

ADG612 Features

• Switches 1 pC charge injection ±2.7 V to ±5.5 V dual-supply operation +2.7 V to +5.5 V single-supply operation Automotive temperature range:
• 40°C to +125°C 100 pA maximum at 25°C leakag

PDF File Details

Part number:

ADG612

Manufacturer:

Analog Devices ↗

File Size:

355.09kb

Download:

📄 Datasheet

Description:

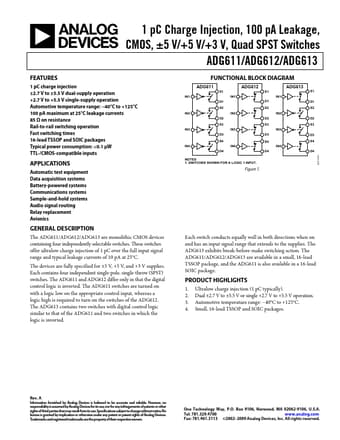

Quad spst switches. The ADG611/ADG612/ADG613 are monolithic CMOS devices containing four independently selectable switches. These switches offer ultralow

ADG612 Application

• Applications Automatic test equipment Data acquisition systems Battery-powered systems Communications systems Sample-and-hold systems Audio signal r
