ADG706

CMOS/ 2.5ohm Low-Voltage/ 8-/16-Channel Multiplexers

ADG706 Features

* 1.8 V to 5.5 V Single Supply ؎3 V Dual Supply 2.5 ⍀ On Resistance 0.5 ⍀ On-Resistance Flatness 100 pA Leakage Currents 40 ns Switching Times Single 16-to-1 Multiplexer ADG706 Differential 8-to-1 Multiplexer ADG707 28-Lead TSSOP Package Low-Power Consumption TTL/CMOS-Compatible Inputs APPLICATIONS Da

ADG706 General Description

CMOS, 2.5 ⍀ Low-Voltage, 8-/16-Channel Multiplexers ADG706/ADG707 FUNCTIONAL BLOCK DIAGRAMS ADG706 S1 S1A DA S8A D S1B DB S16 1-OF-16 DECODER S8B 1-OF-8 DECODER ADG707 A0 A1 A2 A3 EN A0 A1 A2 EN PRODUCT HIGHLIGHTS The ADG706 and ADG707 are low-voltage, CMOS analog multiplexers comprising 16 si.

ADG706 Datasheet (154.17 KB)

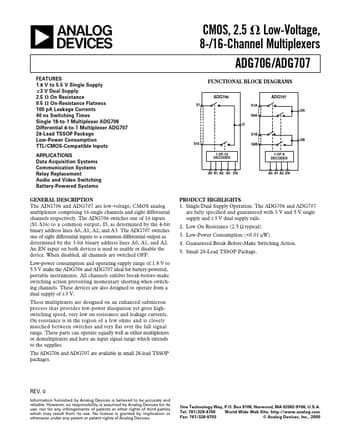

Preview of ADG706 PDF

Datasheet Details

Part number:

ADG706

Manufacturer:

Analog Devices ↗

File Size:

154.17 KB

Description:

Cmos/ 2.5ohm low-voltage/ 8-/16-channel multiplexers.
