ADG774 Datasheet, Mux, Analog Devices

ADG774 Features

  • Mux Low Insertion Loss and On Resistance: 2.2 ⍀ Typical On Resistance Flatness 0.5 ⍀ Typical Automotive Temperature Range
      –40؇C to +125؇C
      –3 dB Bandwidth = 2

PDF File Details

Part number:

ADG774

Manufacturer:

Analog Devices ↗

File Size:

135.35kb

Download:

📄 Datasheet

Description:

Wide bandwidth quad 2:1 mux. The ADG774 is a monolithic CMOS device comprising four 2:1 multiplexer/demultiplexers with high impedance outputs. The CMOS process p

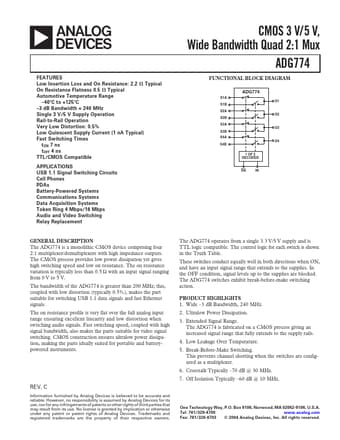

Datasheet Preview: ADG774 📥 Download PDF (135.35kb)
Page 2 of ADG774 Page 3 of ADG774

ADG774 Application

  • Applications USB 1.1 Signal Switching Circuits Cell Phones PDAs Battery-Powered Systems Communications Systems Data Acquisition Systems Token Ring 4
