ADIN6310 Industrial Ethernet Time Sensitive Networking Switch

The ADIN6310 is a 6-port Gigabit Ethernet, time sensitive networking (TSN) switch with integrated security designed for industrial Ethernet applications. Each port can be configured to operate at different speeds. This switch has uncommitted media access controller (MAC) interfaces and can be paired.

ADIN6310 Features

* Ethernet MAC interfaces: 10 Mb, 100 Mb or 1 Gb per port

* 6-port: 4x RMII/RGMII/SGMII and 2x RMII/RGMII

* SGMII, 1000BASE-SX/1000BASE-LX/1000BASE-KX, and 100BASE-FX

* Low Latency Layer 2 Ethernet switch

* Deterministic latency from port to port

* Cut-through or store and fo

ADIN6310-AnalogDevices.pdf

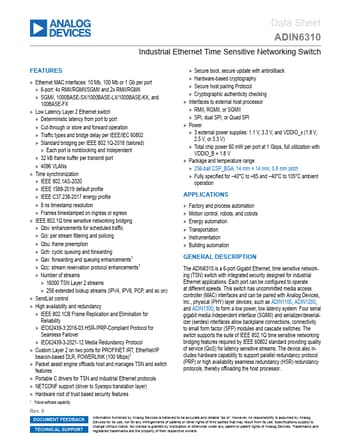

Preview of ADIN6310 PDF
ADIN6310 Datasheet Preview Page 2 ADIN6310 Datasheet Preview Page 3

Datasheet Details

Part number:

ADIN6310

Manufacturer:

Analog Devices ↗

File Size:

2.21 MB

Description:

Industrial ethernet time sensitive networking switch.
