ADL5304 Datasheet, Converter, Analog Devices

ADL5304 Features

  • Converter Optimized for very fast response at all input currents Overall bandwidth of >4 MHz for inputs >1 µA A single positive supply of 5 V is all that is required for operation over a specifi

PDF File Details

Part number:

ADL5304

Manufacturer:

Analog Devices ↗

File Size:

901.89kb

Download:

📄 Datasheet

Description:

Logarithmic converter. The ADL5304 is a high speed logarithmic converter with fast response and low noise over a 200 dB (1 pA to 10 mA) measurement range. T

Datasheet Preview: ADL5304 📥 Download PDF (901.89kb)

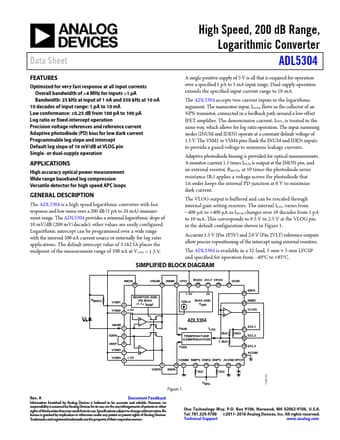

Page 2 of ADL5304 Page 3 of ADL5304

ADL5304 Application

  • Applications High accuracy optical power measurement Wide range baseband log compression Versatile detector for high speed APC loops GENERAL DESCRIP
