ADM206E - RS-232 Line Drivers/Receivers

General Description

The ADM2xxE is a family of robust RS-232 and V.28 interface devices that operate from a single 5 V power supply.

These products are suitable for operation in harsh electrical environments and are compliant with the EU directive on electromagnetic compatibility (EMC) (89/336/EEC).

Key Features

  • Complies with 89/336/EEC EMC directive ESD protection to IEC 1000-4-2 (801-2) Contact discharge: ±8 kV Air-gap discharge: ±15 kV Human body model: ±15 kV EFT/burst immunity (IEC 1000-4-4) Low EMI emissions (EN 55022) Eliminates need for TransZorb® suppressors 230 kbps data rate guaranteed Single 5 V power supply Shutdown mode 1 μW Plug-in upgrade for MAX2xxE Space saving TSSOP package available.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ADM200 Motor Operated Auto Drain SMC
ADM200N04 N-Channel MOSFET ADV
ADM200N06 N-Channel MOSFET ADV
ADM20N06D N-Channel MOSFET ADV
ADM20N06E N-Channel MOSFET ADV

Other Datasheets by Analog Devices

Part Number Description
ADM206 5V Powered CMOS RS-232 Drivers/Receivers
ADM202 CMOS RS-232 Driver/Receiver
ADM202E RS-232 Line Drivers/Receivers
ADM203 CMOS RS-232 Driver/Receivers
ADM205 0.1 uF/ +5 V Powered CMOS RS-232 Drivers/Receivers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

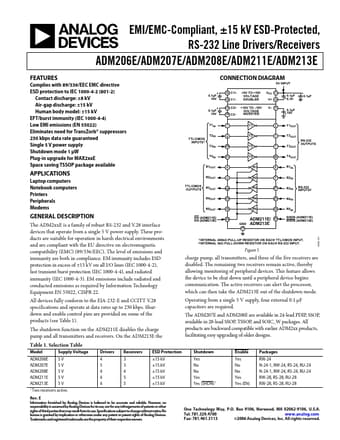

EMI/EMC-Compliant, ±15 kV ESD­Protected, RS-232 Line Drivers/Receivers ADM206E/ADM207E/ADM208E/ADM211E/ADM213E FEATURES Complies with 89/336/EEC EMC directive ESD protection to IEC 1000-4-2 (801-2) Contact discharge: ±8 kV Air-gap discharge: ±15 kV Human body model: ±15 kV EFT/burst immunity (IEC 1000-4-4) Low EMI emissions (EN 55022) Eliminates need for TransZorb® suppressors 230 kbps data rate guaranteed Single 5 V power supply Shutdown mode 1 μW Plug-in upgrade for MAX2xxE Space saving TSSOP package available APPLICATIONS Laptop computers Notebook computers Printers Peripherals Modems GENERAL DESCRIPTION The ADM2xxE is a family of robust RS-232 and V.28 interface devices that operate from a single 5 V power supply.
