ADM6820

(ADM6819 / ADM6820) FET Drive Simple Sequencers

ADM6820 Features

* Single chip enables power supply sequencing of two supplies On-board charge pump fully enhances N-channel FET Adjustable primary supply monitor to 0.618 V Delay from primary supply to secondary supply enabled Fixed 300 ms delay (ADM6819) Capacitor adjustable delay (ADM6820) Logic/analog driven enabl

ADM6820 General Description

The ADM6819 and ADM6820 are simple power supply sequencers with FET drive capability for enhancing N-channel MOSFETs. These devices can monitor a primary supply voltage and enable/disable an external N-channel FET for a secondary supply. The ADM6819 has the ability to monitor two supplies. When more.

ADM6820 Datasheet (186.92 KB)

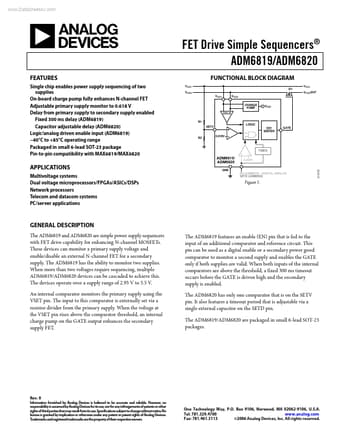

Preview of ADM6820 PDF

Datasheet Details

Part number:

ADM6820

Manufacturer:

Analog Devices ↗

File Size:

186.92 KB

Description:

(adm6819 / adm6820) fet drive simple sequencers.
