ADMP510

Ultralow Noise Microphone

ADMP510 Features

* RF Hardened, Ultralow Noise Microphone with Bottom Port and Analog Output ADMP510 FUNCTIONAL BLOCK DIAGRAM Tiny, 3.35 mm × 2.5 mm × 0.98 mm surface-mount package Noninverted signal output Omnidirectional response High SNR of 65 dBA Sensitivity of

* 38 dBV Sensitivity tolerance of ±2 dB Exte

ADMP510 General Description

The ADMP5101 is an RF hardened, analog output, bottom-ported, omnidirectional MEMS microphone with high performance, ultralow noise, and low power. The ADMP510 consists of a MEMS microphone element, an impedance converter, and an output amplifier. The ADMP510 sensitivity specification makes it an ex.

ADMP510 Datasheet (362.43 KB)

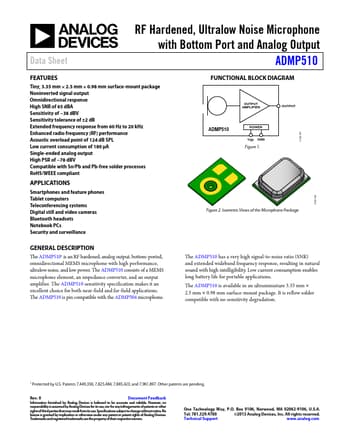

Preview of ADMP510 PDF

Datasheet Details

Part number:

ADMP510

Manufacturer:

Analog Devices ↗

File Size:

362.43 KB

Description:

Ultralow noise microphone.
