ADMV8052 Datasheet, Filter, Analog Devices

ADMV8052 Features

  • Filter
  • Digitally tunable, multioctave, band-pass tuning
  • 3 dB bandwidth: 9% ± 2%
  • Low insertion loss: <4.5 dB typical
  • Excellent rejection: 20 dB at 25% aw

PDF File Details

Part number:

ADMV8052

Manufacturer:

Analog Devices ↗

File Size:

3.03MB

Download:

📄 Datasheet

Description:

Digitally tunable band-pass filter. The ADMV80521 is a RF filter that features a digitally selectable frequency of operation. The device has three band-pass filters (BPF

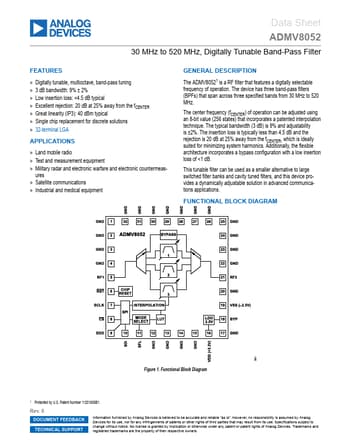

Datasheet Preview: ADMV8052 📥 Download PDF (3.03MB)
Page 2 of ADMV8052 Page 3 of ADMV8052

ADMV8052 Application

  • Applications
  • Land mobile radio
  • Test and measurement equipment
  • Military radar and electronic warfare and electronic cou
