ADP1710 Datasheet, regulator equivalent, Analog Devices

ADP1710 Features

• Regulator Maximum output current: 150 mA Input voltage range: 2.5 V to 5.5 V Light load efficient IGND = 35 μA with zero load IGND = 40 μA with 100 μA load Low shutdown current: <1 μA Low dropout

PDF File Details

Part number:

ADP1710

Manufacturer:

Analog Devices (https://www.analog.com/)

File Size:

343.88kb

Download:

📄 Datasheet

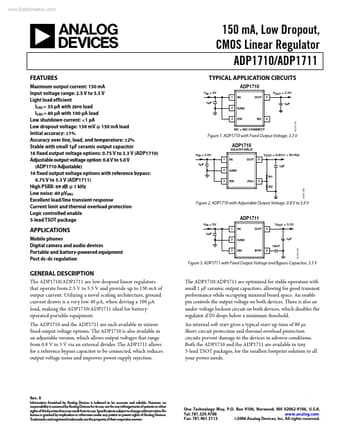

Description:

(adp1710 / adp1711) cmos linear regulator. The ADP1710/ADP1711 are low dropout linear regulators that operate from 2.5 V to 5.5 V and provide up to 150 mA of output current. Ut

ADP1710 Application

• Applications Mobile phones Digital camera and audio devices Portable and battery-powered equipment Post dc-dc regulation IN GND OUT 5 1µF 2 1µF
