ADR318

Precision Low Drift SOT-23 Voltage Reference with Shutdown

ADR318 Features

* Initial Accuracy: ؎5 mV Max, ؎0.27% Max Low Temperature Coefficient: 25 ppm/؇C Max Load Regulation: 100 ppm/mA Line Regulation: 25 ppm/V Low Supply Headroom: 0.6 V Wide Operating Range: (VOUT + 0.6 V) to 15 V Low Power: 120 ␮A Max Shutdown to Less than 3 ␮A Max Output Current: 5 mA Wide Temperature

ADR318 General Description

The ADR318 is a precision 1.8 V band gap voltage reference featuring high accuracy, high stability, and low power consumption in a tiny footprint. Patented temperature drift curvature correction techniques minimize nonlinearity of the voltage change with temperature. The wide operating range and lo.

ADR318 Datasheet (492.03 KB)

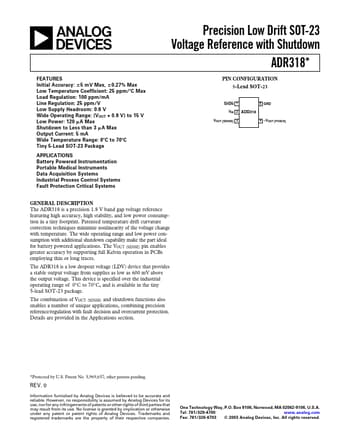

Preview of ADR318 PDF

Datasheet Details

Part number:

ADR318

Manufacturer:

Analog Devices ↗

File Size:

492.03 KB

Description:

Precision low drift sot-23 voltage reference with shutdown.
