ADUM2211, ADUM2210 - Dual-Channel Digital Isolators

Analog Devices

ADUM2211 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADUM2211, ADUM2210. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ADUM2211, ADUM2210
Manufacturer	Analog Devices ↗
File Size	499.53 KB
Description	Dual-Channel Digital Isolators
Datasheet	ADUM2210_AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: ADUM2211, ADUM2210. Please refer to the document for exact specifications by model.

ADUM2211 Product details

Description

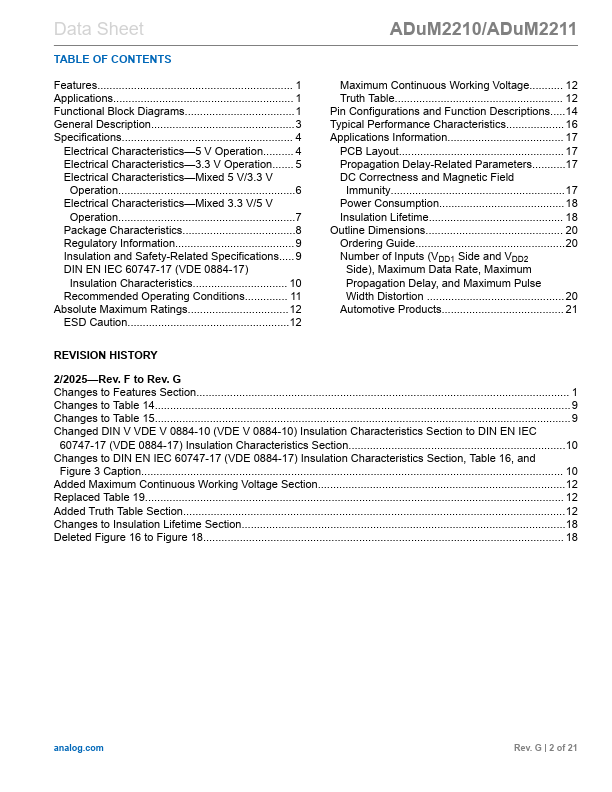

Specifications 4 Electrical Characteristics 5 V Operation 4 Electrical Characteristics 3.3 V Operation 5 Electrical Characteristics Mixed 5 V/3.3 V Operation6 Electrical Characteristics Mixed 3.3 V/5 V Operation7 Package Characteristics8 Regulatory Information 9 Insulation and Safety-Related Specifications 9 DIN EN IEC 60747-17 (VDE 0884-17) Insulation Characteristics 10 Recommended Operating Conditions 11 Absolute Maximum Ratings12 ESD Caution12 ADuM2210/ADuM22

Features

High isolation voltage: 5000 V rms.
Enhanced system-level ESD performance per IEC 61000-4-x.
Low power operation.
5 V operation.
1.6 mA per channel maximum at 0 Mbps to 1 Mbps.
3.7 mA per channel maximum at 10 Mbps.
3.3 V operation.
1.4 mA per channel maximum at 0 Mbps to 1 Mbps.
2.4 mA per channel maximum at 10 Mbps.
Bidirectional communication.
3.3 V/5 V level translation.
High temperature operation: 125°C.
Default low output.
